Upgrade your RV with the Coleman 38204-0692 Top/Down Mount RV Air Conditioner, a 15,000 BTU powerhouse in stylish black. Designed to fit seamlessly into any 14"x14" opening, this eco-friendly unit with R32 refrigerant offers the highest cooling output in the Mach Series, making it the world's most powerful RV air conditioner. The Coleman 38204-069 is the go-to choice for optimal cooling performance and reliability on your road trips.
- Impressive 15,000 BTU capacity ensures powerful and efficient cooling
- Top/Down Mount
- R32 Refrigerant
- Easy replacement, fits any 14"x14" opening
- Highest cooling output in the Mach Series, world's most powerful RV air conditioner
- R32 refrigerant for eco-friendliness, equipped with a 1/3 HP fan motor
- Versatile installation options: Suitable for both ducted and non-ducted systems, providing flexibility to cater to your specific RV configuration and preferences.
- Part numbers 38204-0692, 48204-6692, 48254-6692, 48254-0692, and 48204-0692 correspond to the same air conditioner model

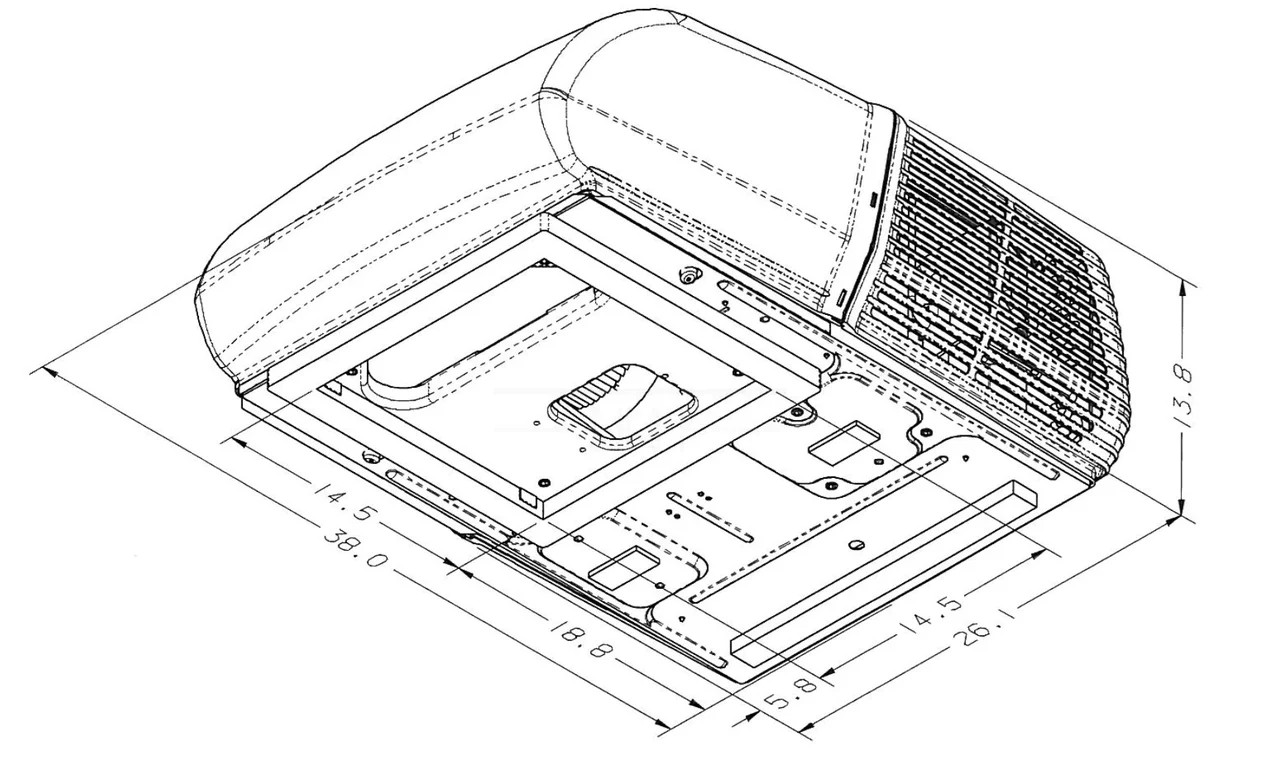

- Size & Weight: 13.8"H × 26.1"W × 38.0"L | 85 lbs
Specifications |
|
| Height | Standard (13.8") |
|---|---|
| Weight (lbs) | 90 |
| BTUs | 15,000 |
| Heat Strip BTUs | 5,600 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Cooling Amps | 16.1 |
| Full-Load Heating Amps | 16 |
| Standard Running Watts | 1,560 |
| Running watts w/ heat strip | 1,800 |
| Air Delivery CFM | 320 - High Speed |
| Color | Textured Black |
| Heat Pump | No |
| Power Saver | No |
| Condensate Pump | No |
| Soft Start | No |
| Mfg Part # | 38204-0692 |
| Suggested Replacement Model | 38204-0692 |
Warranty: 2 Years Parts & Labor
