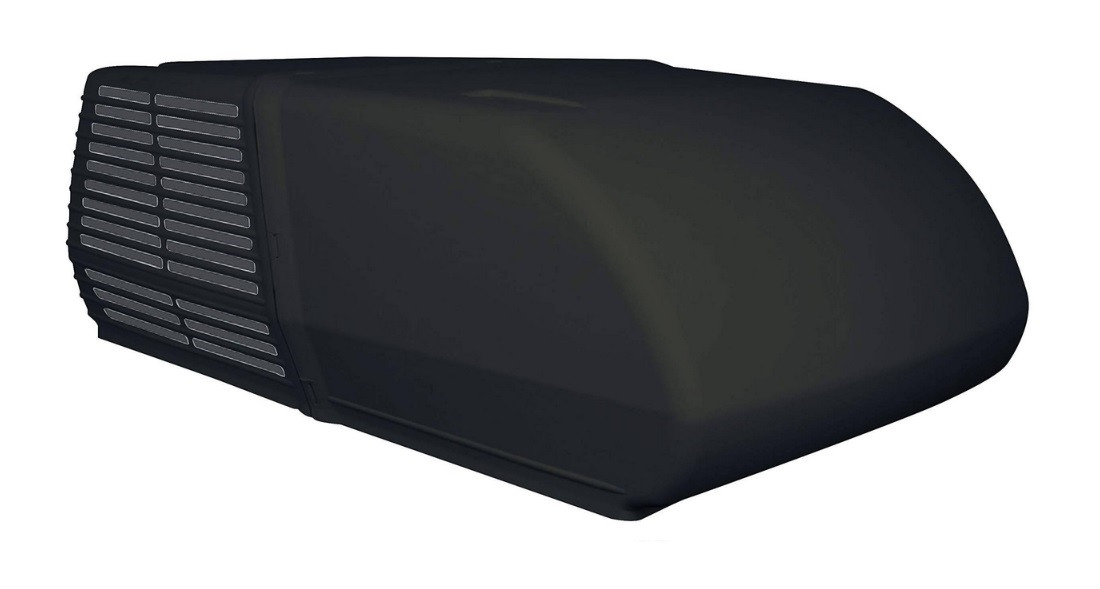

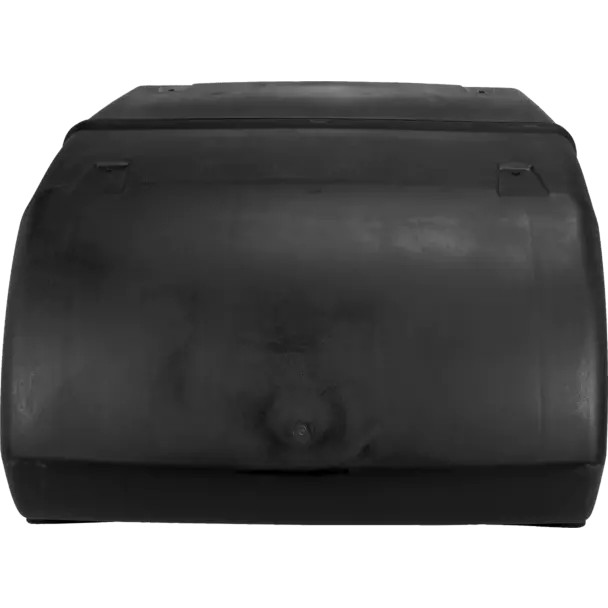

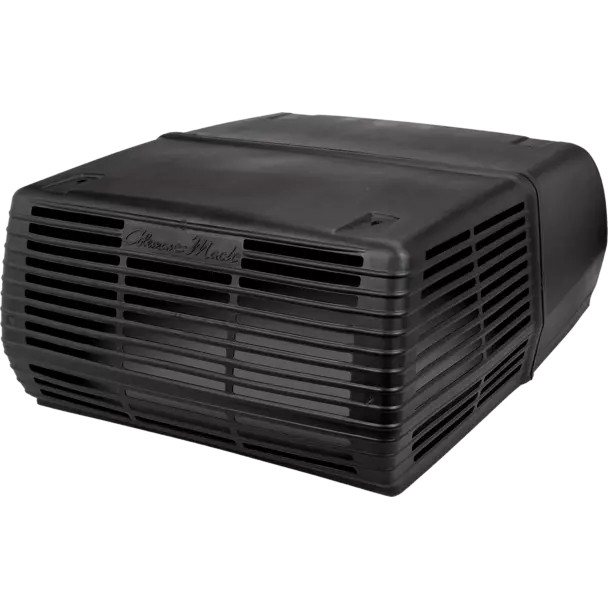

Introducing the Coleman-Mach Standard Height Air Conditioner, delivering 13,500 BTUs of cooling power tailored to your environment. With it's rugged Textured Black finish, the 38203-069 belongs to the trustworthy Signature series of 120-volt rooftop ACs . Perfect for RVs, trailers, trains, booths or really anything with a 14X14 inch roof opening, ensuring a comfortable climate wherever you may roam.
The Signature Series
The Gold Standard for Coleman-Mach ACs
The signatures series embodies the innovation and quality that built the name Coleman-Mach over the last 55 years. Get superior cooling performance, the highest quality components, and more profile options than the competitors.
13,500 BTU/h Air Conditioner
America's over-the-road best seller!
One of the best RV air conditioning values available. Featuring a large evaporator and condenser coils with raised lance fins to help dissipate heat, has a solid 13,500 nominal BTU cooling capacity, and delivers 320 CFM (cubic feet per minute) airflow. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner. Add the optional Heater Assembly, and you'll have 5,600 BTUs of heat for cool-weather outings.
Specifications |
|

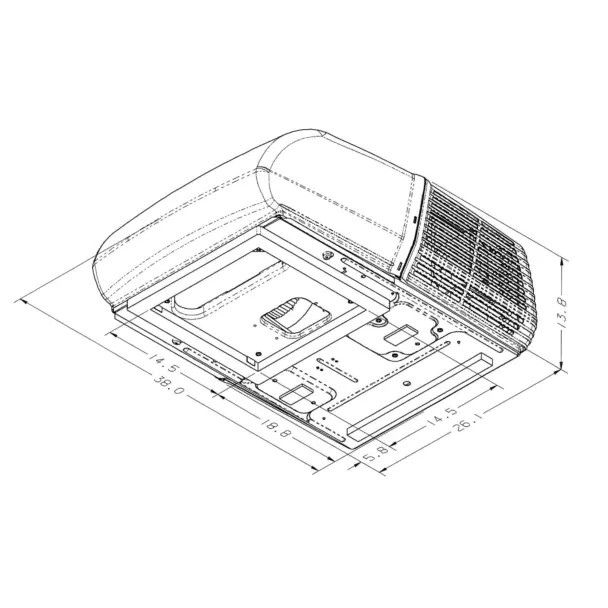

| Height | Standard (13.8") |
|---|---|
| Weight (lbs) | 89 |
| BTUs | 13,500 |
| Heat Strip BTUs | 5,600 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Cooling Amps | 15.3 |
| Full-Load Heating Amps | 16 |
| Standard Running Watts | 1,650 |
| Running watts w/ heat strip | 1,800 |
| Air Delivery CFM | 320 |
| Color | Textured Black |
| Heat Pump | No |
| Power Saver | No |
| Condensate Pump | No |
| Soft Start | No |
| Model Number Changes |
48203-069 |
| Mfg Part # | 38203-069 |
