The TuttoKool Heat Pump Condenser offers you high quality product at an affordable price, breaking the traditional view that a Heat Pump has to be expensive.
Standard Features:
- Eco-friendly R454B refrigerant with low GWP value.
- Energy-efficient compressor.
- Equipped with thermal overload protection.
- High quality condenser with inner-groove copper tube and aluminum fin.
- Service valves with sweat connections and easy-access gauge ports.
- Factory-installed high-pressure switch.
- AHRI certified and ETL listed.
- Filter drier included as accessory.
- Compact design allows for ease of installation, clearance, durability, and maneuverability.
- Powder-painted galvanized steel cabinet chassis.
- Protective steel louvered coil guard.
- Steel wire axial fan guard
- ECM fan motor and unique blade style allowing for smooth discharge air and quieter operation.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
The TuttoKool Cased Coil offers you high quality product at an affordable price, breaking the traditional view that HVAC equipment has to be expensive.
Standard Features:
- Equipped with a refrigerant sensor, suitable for R454b system .
- UL 60335 2-40 and AHRI certificated.
- High efficiency and energy saving, AHRI energy efficiency certificated .
- Multi-position installation accommodated a variety of installation scenarios .
- Broad cooling range from 55 F to 120 F.
- Optional factory installed Thermostatic Expansion Valve .
- All aluminum coil for corrosion-resistance.
- 100% insulation, reduces operating sound and enhance thermal insulation.
- Perfect match with TGF gas furnace, no need extra kit for R454b system.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
The TuttoKool 80% Gas Furnace offers you high quality product at an affordable price, breaking the traditional view that a gas furnace has to be expensive.
Standard Features:
- Durable aluminized steel tubular heat exchanger.
- Hot-surface ignition for dependable operation.
- Quiet multi-speed direct-drive Blower.
- Natural gas and propane (LP) convertible.
- R454b refrigerant leakage sensor adaptable
- UL60335-2-40 certified
- Designed for multi-position installation: Up flow, down flow, horizontal.
- Industry-standard cabinet sizes for easy replacement, installation and add-on cooling.
- Convenient left or right connection for gas and electric service.
- Removable bottom for side or bottom return application.
- 5-Years: Standard Parts Warranty.
- 10-Years: After Registration.

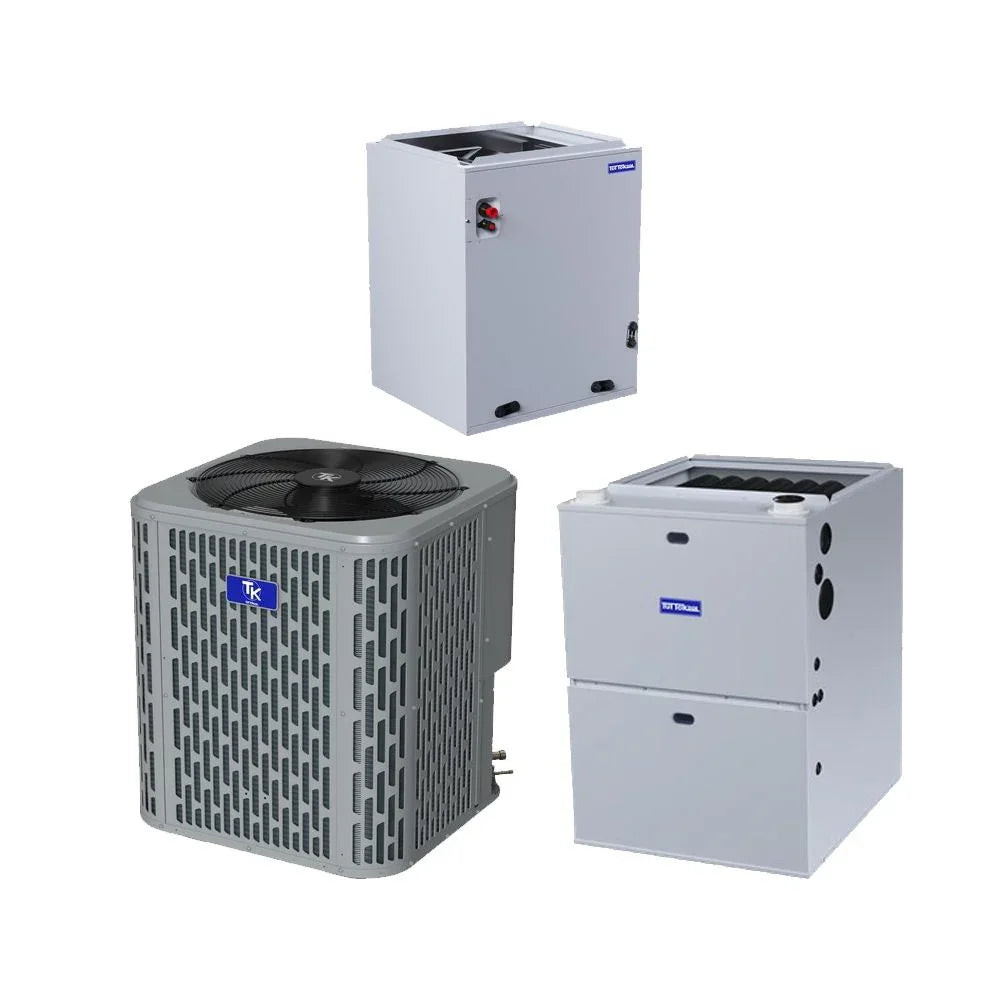

Product Specification
| Model Number(s) | THP5048A1000A - TCCM4860CAOH - TGF80M080C4A |
| Brand | TuttoKool |
| Type | Dual Fuel |
| Ton | 4.0 Ton |
| SEER | 14.3 |
| Cooling Btu | 45,000 |
| Heating Btu | 44,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Furnace Configuration | Up-Flow |
| Blower | Multi-Speed |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 33 3/16 |
| Outdoor Unit Width (Inches) | 29 1/8 |
| Outdoor Unit Depth (Inches) | 29 1/8 |
| Coil Dimensions (W x D x H) | 21 x 21 x 30 |
| Indoor Unit Height (Inches) | 33 3/4 |
| Indoor Unit Width (Inches) | 21 |
| Indoor Unit Depth (Inches) | 28 1/2 |
| AHRI Certificate # | 216434257 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190271464 |
5-Years: Standard Parts Warranty
10-Years: After Registration
