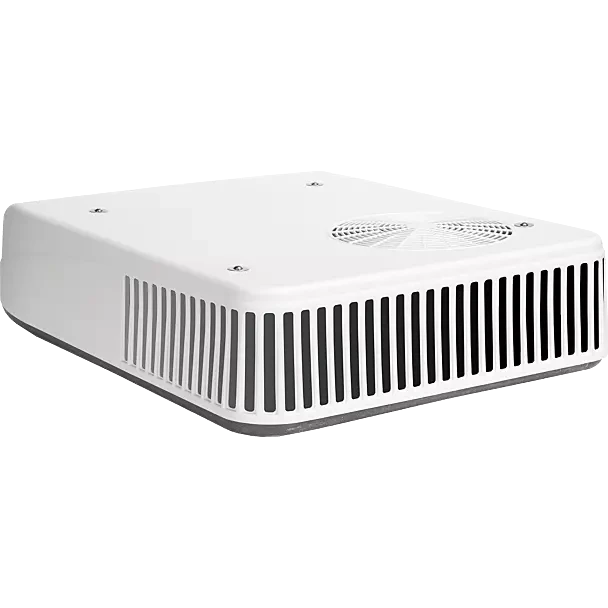

Introducing the Coleman-Mach Ultra-Low Profile Mach 8 Air Conditioner, delivering 13,500 BTUs of cooling power tailored to your environment. With it's rugged Textured White finish, the 37203-076 belongs to the trustworthy Signature series of 120-volt rooftop ACs . Perfect for RVs, trailers, trains, booths or really anything with a 14X14 inch roof opening, ensuring a comfortable climate wherever you may roam.
The Signature Series
The Gold Standard for Coleman-Mach ACs
The signatures series embodies the innovation and quality that built the name Coleman-Mach over the last 55 years. Get superior cooling performance, the highest quality components, and more profile options than the competitors.
13,500 BTU/h Air Conditioner
America's over-the-road best seller!
One of the best RV air conditioning values available. Featuring a large evaporator and condenser coils with raised lance fins to help dissipate heat, has a solid 13,500 nominal BTU cooling capacity, and delivers 320 CFM (cubic feet per minute) airflow. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner. Add the optional Heater Assembly, and you'll have 5,600 BTUs of heat for cool-weather outings.
Ultra-Low Profile Mach 8
The revolutionary MACH 8 models have the lowest aerodynamic profile of any rooftop unit in the industry.
The ultra-low profile MACH 8 has an industry exclusive fiberglass basepan that provides superior strength and durability while reducing weight. Although the profile may be small, it continues to outperform all competitive models.
Two motors deliver the same BTUs of cooling on both High and low speeds. The MACH 8 has the highest air flow on high speed and is ultra-quiet on low speed for night time cooling.
Specifications |
|
| Height | Low (8.25") |
|---|---|
| Weight (lbs) | 90 |
| BTUs | 13,500 |
| Heat Strip BTUs | 6,000 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Cooling Amps | 15.2 |
| Standard Running Watts | 1599 |
| Running watts w/ heat strip | 1748 |
| Air Delivery CFM | 300 - High Speed |
| Color | Textured White |
| Heat Pump | No |
| Power Saver | No |
| Condensate Pump | No |
| Soft Start | No |
| Model Number Changes |
This unit is a replacement for the following models: 47203-076 Some old models listed above require modifications before replacing. If unsure, contact us for more info. |
| Mfg Part # | 37203-076 |
