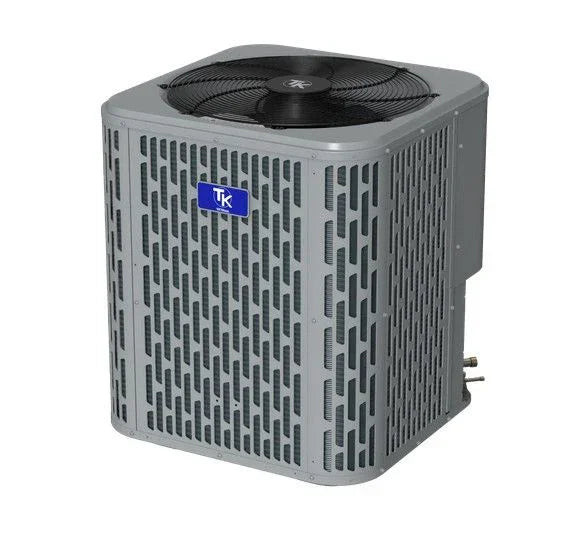

The TuttoKool Air Conditioning Condenser offers you high quality product at an affordable price, breaking the traditional view that an air conditioner has to be expensive.
Standard Features:
- Eco-friendly R454B refrigerant with low GWP value.
- Energy-efficient compressor.
- Equipped with thermal overload protection.
- High quality condenser with inner-groove copper tube and aluminum fin.
- Service valves with sweat connections and easy-access gauge ports.
- Factory-installed high-pressure switch.
- AHRI certified and ETL listed.
- Filter drier included as accessory.
- Compact design allows for ease of installation, clearance, durability, and maneuverability.
- Powder-painted galvanized steel cabinet chassis.
- Protective steel louvered coil guard.
- Steel wire axial fan guard
- ECM fan motor and unique blade style allowing for smooth discharge air and quieter operation.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration

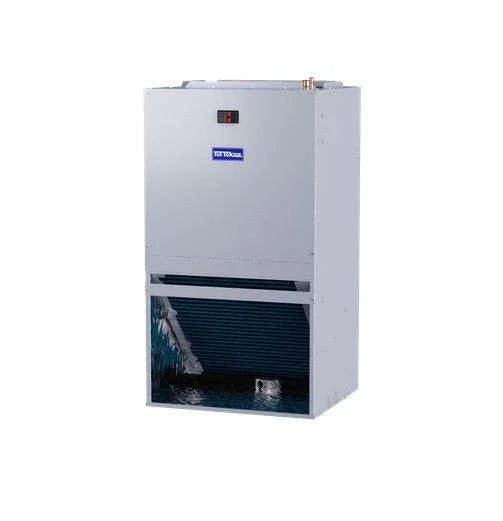

The TuttoKool Front Return Air Handler offers you high quality product at an affordable price, breaking the traditional view that an air handler has to be expensive.
Standard Features:
- Direct-drive, multi-speed motors allow air volume variation for heating / cooling.
- Multi-speed ECM motor: M152 series
- Multi-speed PSC motor: M134 series
- Thermoplastic drain pan with bottom primary and secondary drain connections.
- Built-in filter rack.
- Wall-hanging bracket included.
- Front or bottom return available.
- Optional heating elements in 5kW, 7.5kW, and 10kW.
- All-aluminum coil.
- AHRI listed and ETL listed.
- R454B refrigerant sensor is configured to ensure safe operation.
- R454B refrigerant sensor is factory-installed, more rooms are available for installation.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration

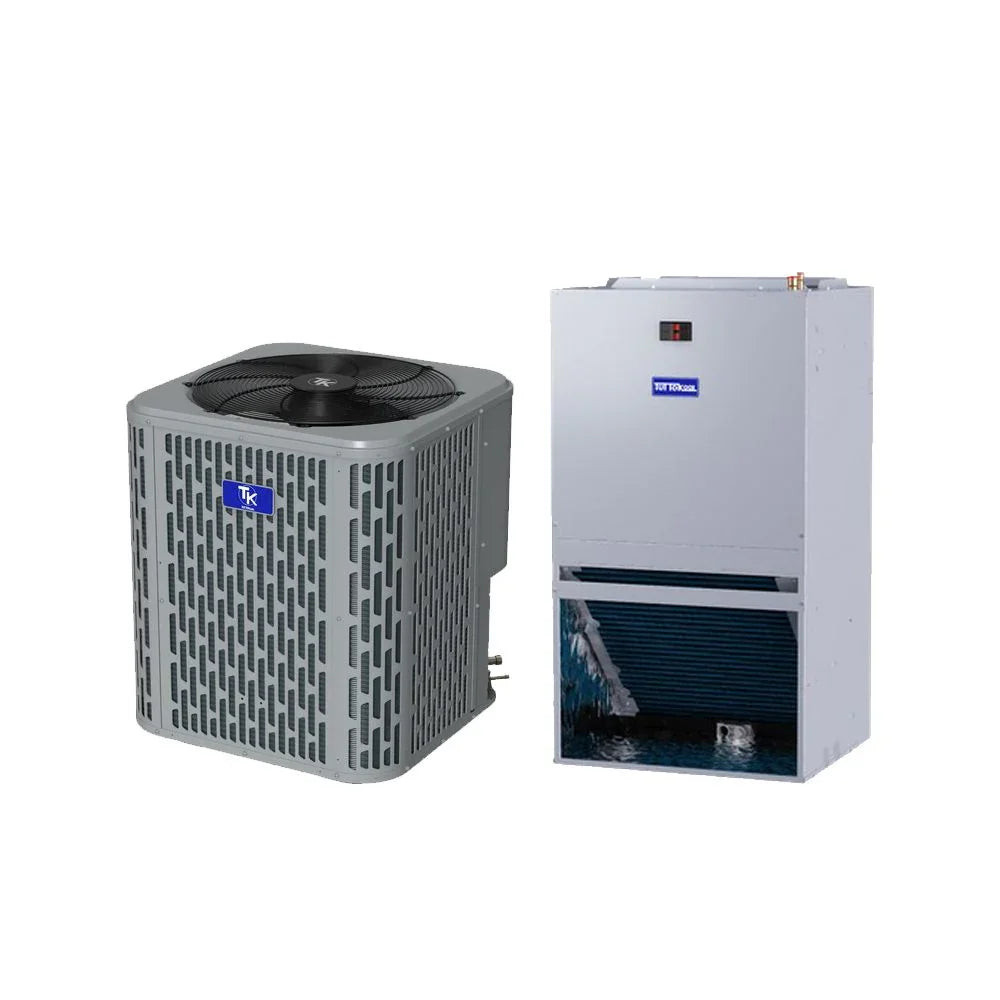

Product Specification
| Model Number(s) | TAC5030A1000A - TWM5E31B000A - BAYHTRJ505BRKAA |
| Brand | TuttoKool |
| Type | Air Conditioning |
| Ton | 2.5 Ton |
| SEER | 14.3 |
| Cooling Btu | 28,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Blower | Multi-Speed |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 33 3/16 |
| Outdoor Unit Width (Inches) | 28 |
| Outdoor Unit Depth (Inches) | 28 |
| Indoor Unit Height (Inches) | 36 1/2 |
| Indoor Unit Width (Inches) | 22 |
| Indoor Unit Depth (Inches) | 19 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 216434034 |
| UPC # | 633190270580 |
5-Years: Standard Parts Warranty
10-Years: After Registration
