Description

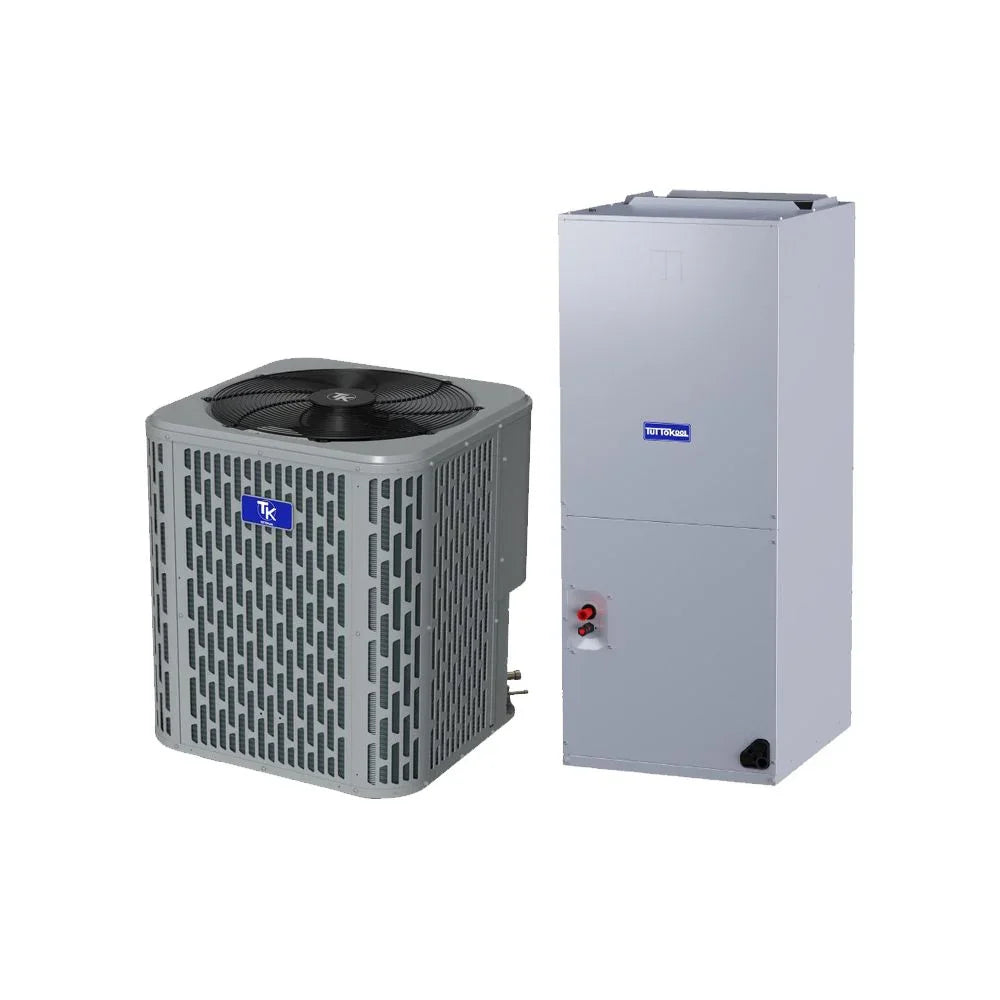

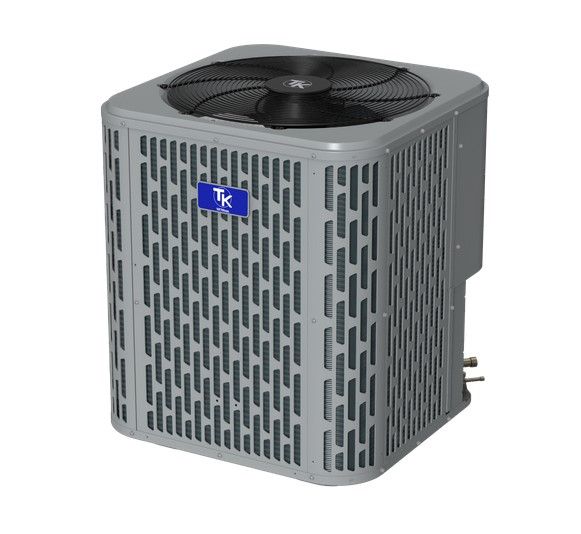

The TuttoKool Air Conditioning Condenser offers you high quality product at an affordable price, breaking the traditional view that a air conditioner has to be expensive.
Standard Features:
- TuttoKool units are available in 13.4 SEER2,and 14.3/15.2 SEER2
- 1.5 - 5.0 ton models available
- Galvanized steel cabinets with powder painted for 1000 hours salt spray test
- The optimized compact design for easier transportation and save your installation space
- ETL certified for safety and AHRI listed for efficiency
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration

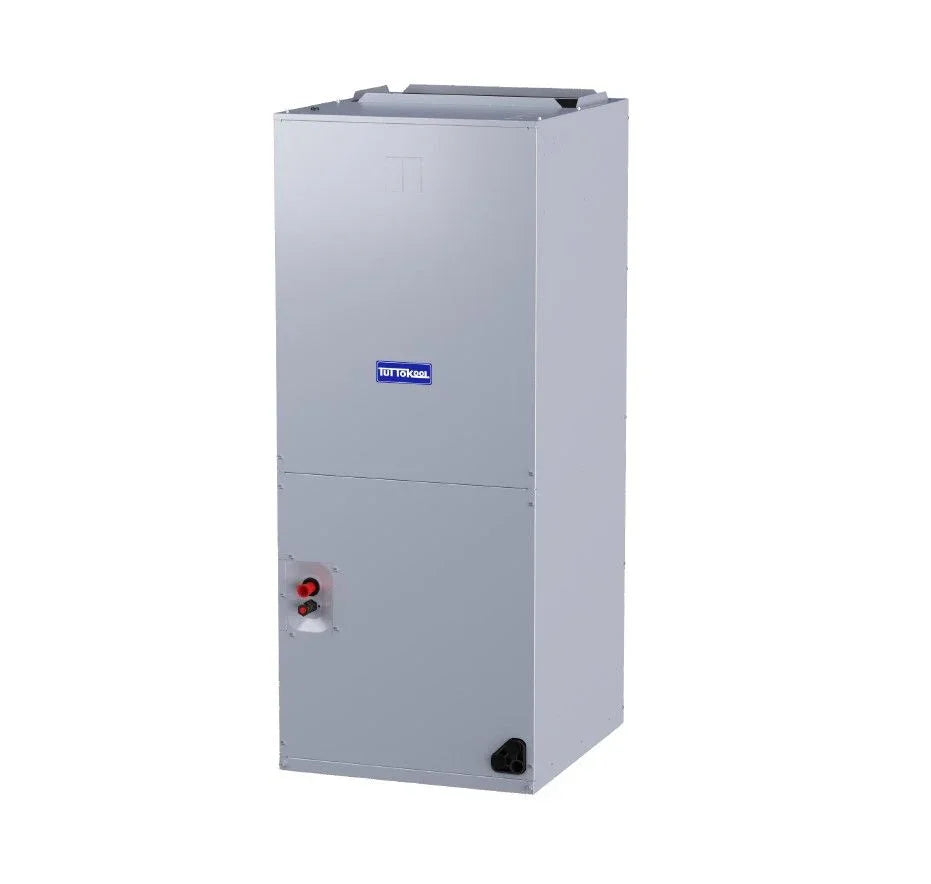

The TuttoKool Air Handler offers you high quality product at an affordable price, breaking the traditional view that a air conditioner has to be expensive.
Standard Features:
- TuttoKool air handlers are available with PSC or ECM motor.
- 1.5 - 5.0 ton models available
- Galvanized steel cabinets with powder painted for 1000 hours salt spray test
- Multiple positions configuration: Vertical upflow/downflow & horizontal left or right
- ETL certified for safety and AHRI listed for efficiency
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration\
Product Specification
| Model Number(s) | AAC5060E1000A - A4AH4P60E1B00A - JAYHTR1A10BKRAA |
| Brand | TuttoKool |
| Type | Air Conditioning |
| Ton | 5.0 Ton |
| SEER | 13.8 |
| Cooling Btu | 60,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Blower | Multi-Speed |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 33 3/16 |
| Outdoor Unit Width (Inches) | 29 1/8 |
| Outdoor Unit Depth (Inches) | 29 1/8 |
| Indoor Unit Height (Inches) | 54 1/2 |
| Indoor Unit Width (Inches) | 22 |
| Indoor Unit Depth (Inches) | 24 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 212579401 |
| UPC # | 703158756170 |
