Description

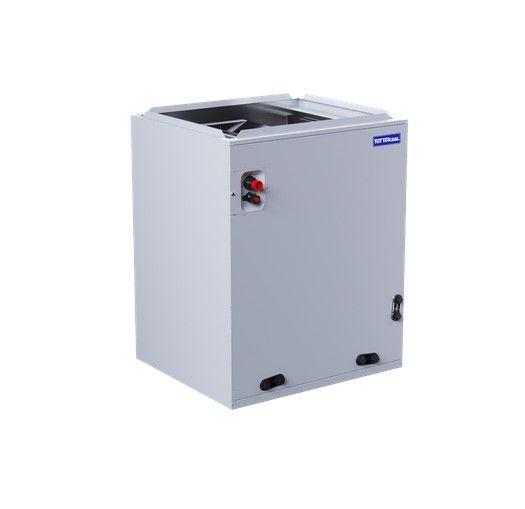

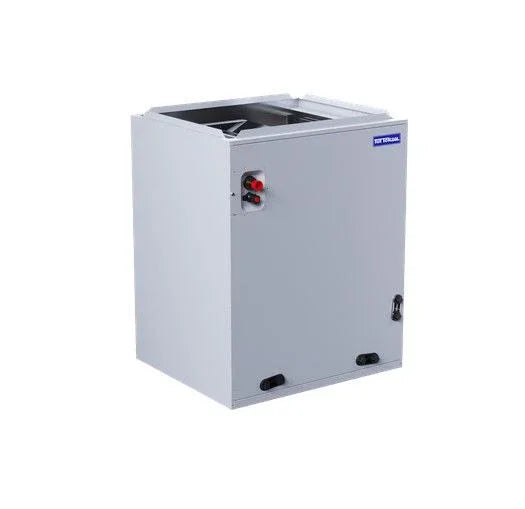

The TuttoKool Cased Coil offers you high quality product at an affordable price, breaking the traditional view that HVAC equipment has to be expensive.
Standard Features:
- Equipped with a refrigerant sensor, suitable for R454b system .
- UL 60335 2-40 and AHRI certificated.
- High efficiency and energy saving, AHRI energy efficiency certificated .
- Multi-position installation accommodated a variety of installation scenarios .
- Broad cooling range from 55 F to 120 F.
- Optional factory installed Thermostatic Expansion Valve .
- All aluminum coil for corrosion-resistance.
- 100% insulation, reduces operating sound and enhance thermal insulation.
- Perfect match with TGF gas furnace, no need extra kit for R454b system.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
Product Specification
| Model Number(s) | TCCM4860DAOH |
| Brand | TuttoKool |
| Category | Evaporator Coils |
| Ton | 5.0 Ton |
| Refrigerant Type | R-454B |
| Liquid Valve Size (Inches) | 3/8 |
| Height (Inches) | 30 |
| Width (Inches) | 24 1/2 |
| Depth (Inches) | 21 |
| Total Shipping Weight (lbs.) | 96 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190270054 |
