Description

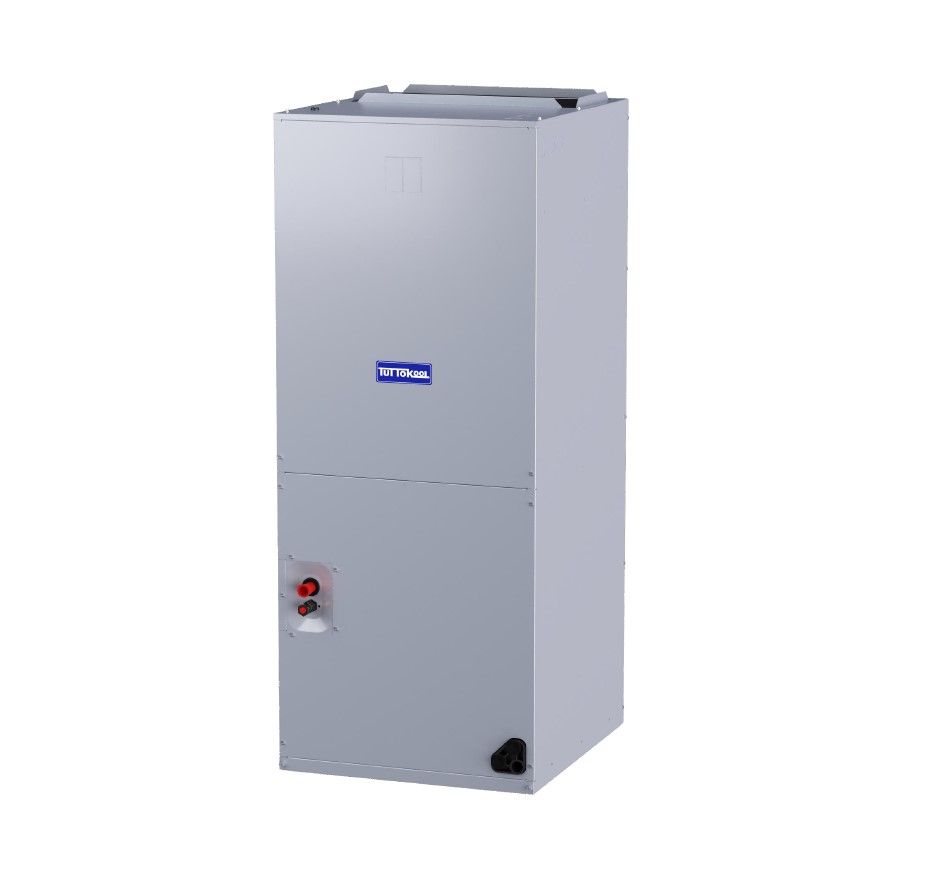

The TuttoKool Air Handler offers you high quality product at an affordable price, breaking the traditional view that HVAC equipment has to be expensive.
Standard Features:
- High heat-transfer efficiency and low static-pressure drop A-shaped coil.
- Foil-faced insulation to prevent energy loss through the cabinet.
- Factory-sealed cabinet certified to achieve 2% or less air leakage rate at 1.0 inch water column.
- Multi-stage blower Speed Control to align with varying capacity demands.
- 4-position installation: Upflow, Horizontal Right, Downflow, Horizontal Left.
- Horizontal and vertical condensate drain pans standard, primary and secondary condensate fittings.
- Field-installed electric heater kits 5, 7.5, 10, 15, 20 kW available as accessories.
- Multiple electrical entry locations.
- Dual front panel, volute and coil with slide track, TXV with threaded connection for easy maintenance.
- Integrated filter rack with toolless door access.
- Easy-to-braze copper evaporator connection.
- TXV designed for easy piston replacement.
- All-aluminum heat exchanger extends product lifetime.
- Advanced internal welding process to reduce potential corrosion.
- AHRI and ETL listed.
- Polymer condensate drain pan with UVC inhibitor to extends product lifetime.
- Fully-insulated cabinet design.
- R454B refrigerant sensor ensures safe operation.
- R454B refrigerant sensor is factory-installed, making unit suitable for more room types and applications.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
Product Specification
| Model Number(s) | T4AH4E43B000A - JAYHTR1A10BKRAA |
| Brand | TuttoKool |
| Category | Air Handlers |
| Ton | 3.5 Ton |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 15 |
| Blower | Multi-Speed |
| Refrigerant Type | R-454B |
| Liquid Valve Size (Inches) | 3/8 |
| Height (Inches) | 46 1/2 |
| Width (Inches) | 19 5/8 |
| Depth (Inches) | 21 5/8 |
| Total Shipping Weight (lbs.) | 134 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190269904 |
