Description

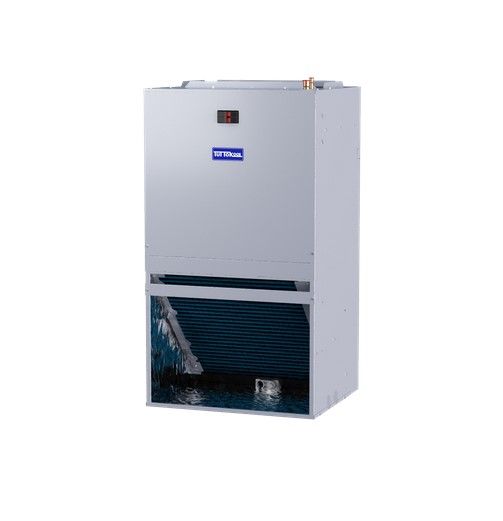

The TuttoKool Front Return Air Handler offers you high quality product at an affordable price, breaking the traditional view that an air handler has to be expensive.
Standard Features:
- Direct-drive, multi-speed motors allow air volume variation for heating / cooling.
- Multi-speed ECM motor: M152 series
- Multi-speed PSC motor: M134 series
- Thermoplastic drain pan with bottom primary and secondary drain connections.
- Built-in filter rack.
- Wall-hanging bracket included.
- Front or bottom return available.
- Optional heating elements in 5kW, 7.5kW, and 10kW.
- All-aluminum coil.
- AHRI listed and ETL listed.
- R454B refrigerant sensor is configured to ensure safe operation.
- R454B refrigerant sensor is factory-installed, more rooms are available for installation.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
Product Specification
| Model Number(s) | TWM4P30B000A - BAYHTRJ505BRKAA |
| Brand | TuttoKool |
| Category | Air Handlers |
| Ton | 2.5 Ton |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 15 |
| Blower | Multi-Speed |
| Refrigerant Type | R-454B |
| Liquid Valve Size (Inches) | 3/8 |
| Height (Inches) | 39 1/2 |
| Width (Inches) | 22 |
| Depth (Inches) | 15 |
| Total Shipping Weight (lbs.) | 98 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190270122 |
