RV Hot Water Heater Suburban 10 Gallon

SuburbanSKU: 5243A
No reviews

Price:
Sale price$765.99

Estimate shipping

Description

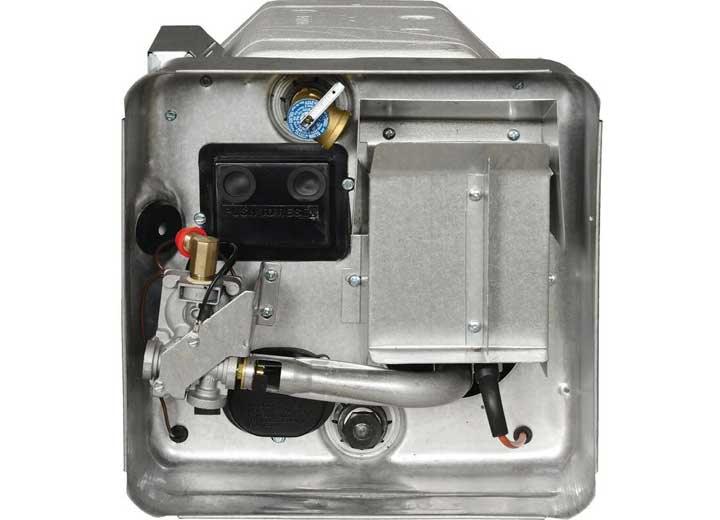

The Suburban SW10DE/5243A/5143A Direct Spark Ignition Gas/Electric Water Heater is a 10 gallon water heater that is perfect for your RV. It features:

  • Direct spark ignition
  • 10 gallon capacity with gas/electric operation
  • The 1440-watt Incoloy electric element is specifically designed for compatibility with campground power.
  • Benefit from a high recovery rate of 12,000 BTU/hour.
  • The porcelain steel tank features foam insulation for enhanced efficiency.
  • Easy to install access door and frame, sold separately below, for convenient accessibility.
  • All part numbers 5243A, 5143A, 5143, and SW10DE correspond to the same water heater model
  • SW=Suburban Water Heater, #=Gallon Tank, D=DSI, E=110V Electric, L=Relay, M=Heat Exchange, P=Pilot

Product Overview

The Suburban SW10DE Gas Water Heater stands out for its reliability and easy maintenance, featuring a high-recovery 12,000 BTU/hour model with a porcelain steel tank, foam insulation, and a replaceable anode rod to counter corrosive electrolysis. The one-piece, die-formed housing not only provides protection for controls but also allows easy access, seamlessly fitting into prior model cut-out openings on any RV side. Installation of the access door and frame is straightforward. Additionally, the SW10DE Model offers versatility by utilizing campground or generator power through its 1440-watt Incoloy electric element, providing a recovery rate of 6.1 gallons per hour. For a faster recovery rate of 16.2 gallons per hour, users can simultaneously use both gas and electric. The gas ignition switch, available separately, allows convenient control from inside the RV. It's important to note that gas appliances should be installed and serviced by a qualified technician. The water heater tank undergoes pressure testing twice during manufacturing to ensure its integrity, using a porcelain-lined steel construction with an anode rod to absorb electrolytical action, similar to home water heaters.

Model Name Breakdown

  • SW-Suburban Water Heater
  • 10- 10 Gallon
  • D- 12 Volt DC Direct Spark Ignition Gas Heating System
  • E- 120 Volt AC Heating Element
Technical Specifications

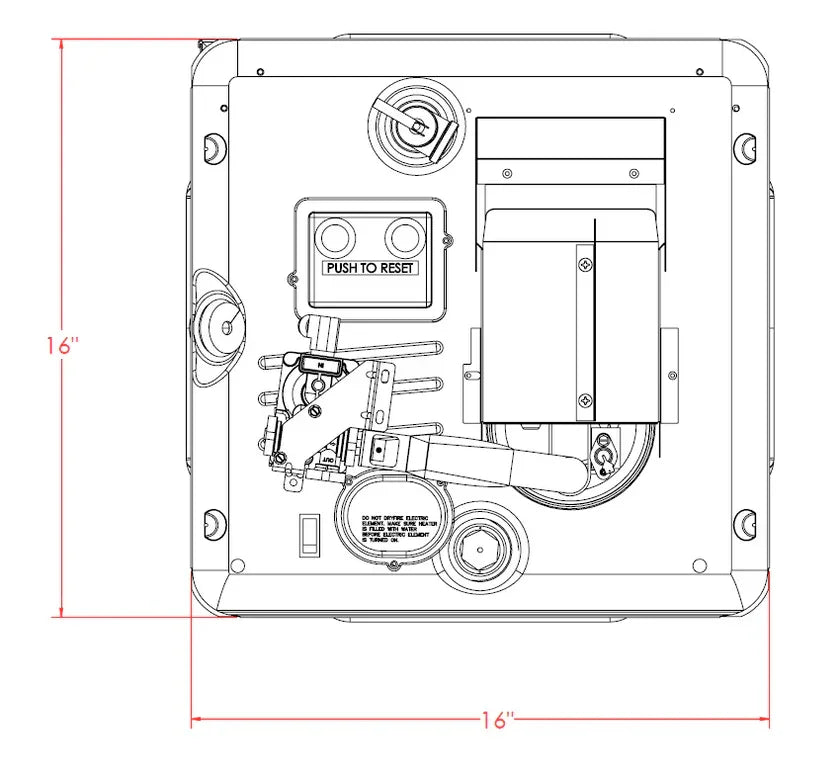

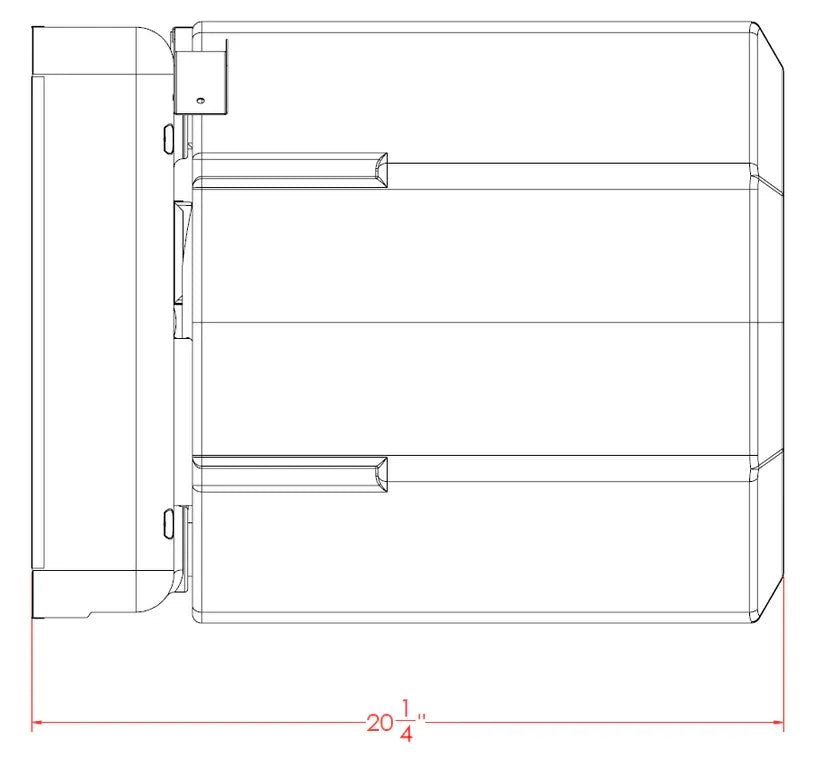

Dimensions: 16.2 in x 16.2 in x 20.5 in
Capacity: 10 Gallons
Type: DSI | Gas and Electric
Load Amps: N/A
Additional Information
Manufacturer: Suburban
UPC: 755790706327
Model Number: SW10DE
Manufacturer Warranty: suburbanrv.com/service-support/
Manufacturer Warranty Term: 2 Years
