Description
Experience all-season comfort with the Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Inverter Heat Pump with a 16 Ft. Kit. This sleek, wall-mounted system delivers powerful cooling, reliable heating, dehumidification, and fresh ventilation, all controlled by a smart handheld remote for effortless, precise climate management.
- Performance and Efficiency — Cooling 35,000 BTU/h; Heating 35,400 BTU/h. SEER2 17.0, EER2 9.5; HSPF2 8.5, COP2 3.2. Inverter-driven variable-speed operation ensures steady temperatures and energy savings.
- Power and Compatibility — 208–230V, 60Hz, 1Ph operation. High-wall ductless design offers flexible installation for open rooms and zoned spaces.

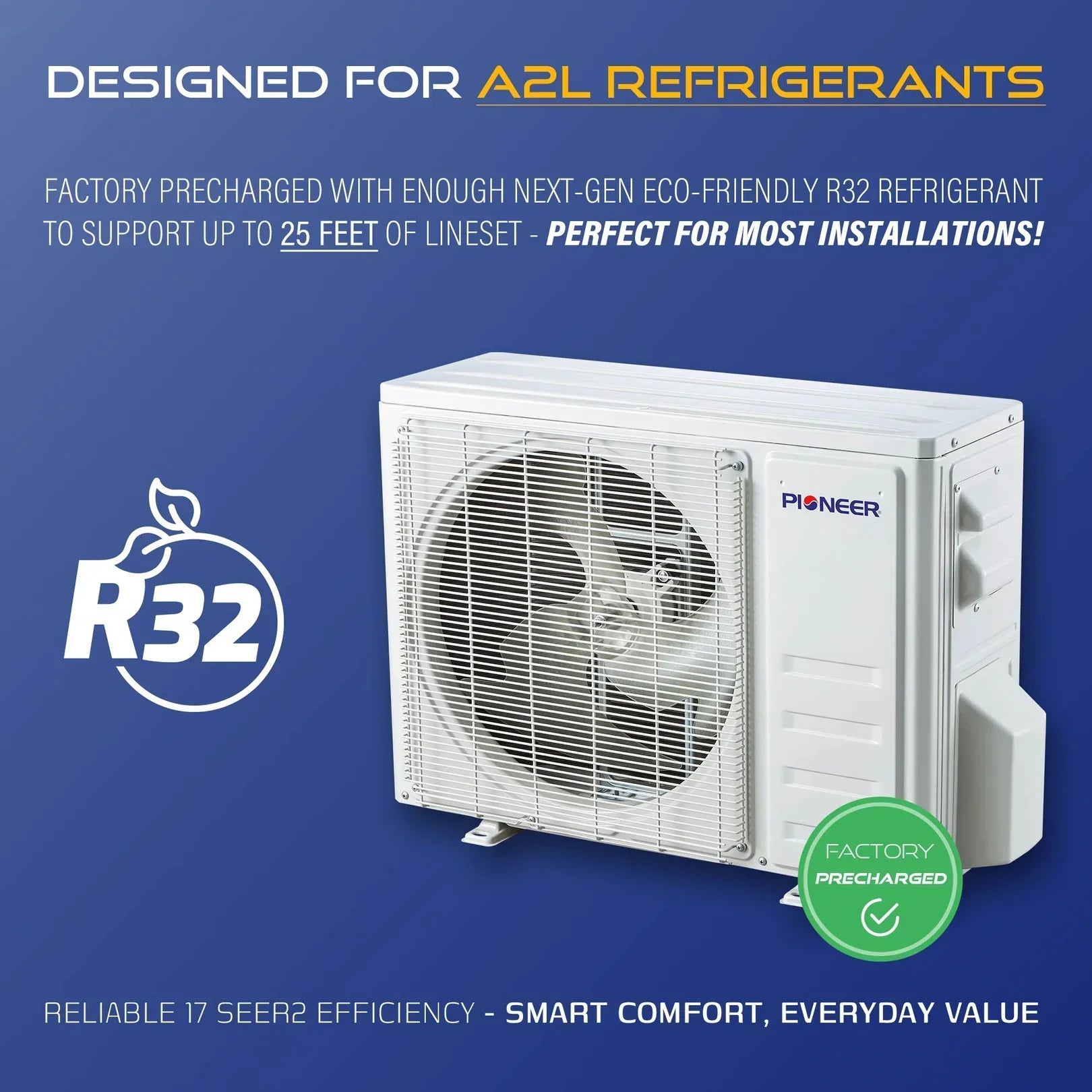

- Refrigerant and Line Set — Factory pre-charged with environmentally friendly R-32 refrigerant. Accommodates refrigerant line lengths up to 25 ft per circuit; ships with a 16 ft lineset. If a longer lineset is used, additional refrigerant must be charged during installation.

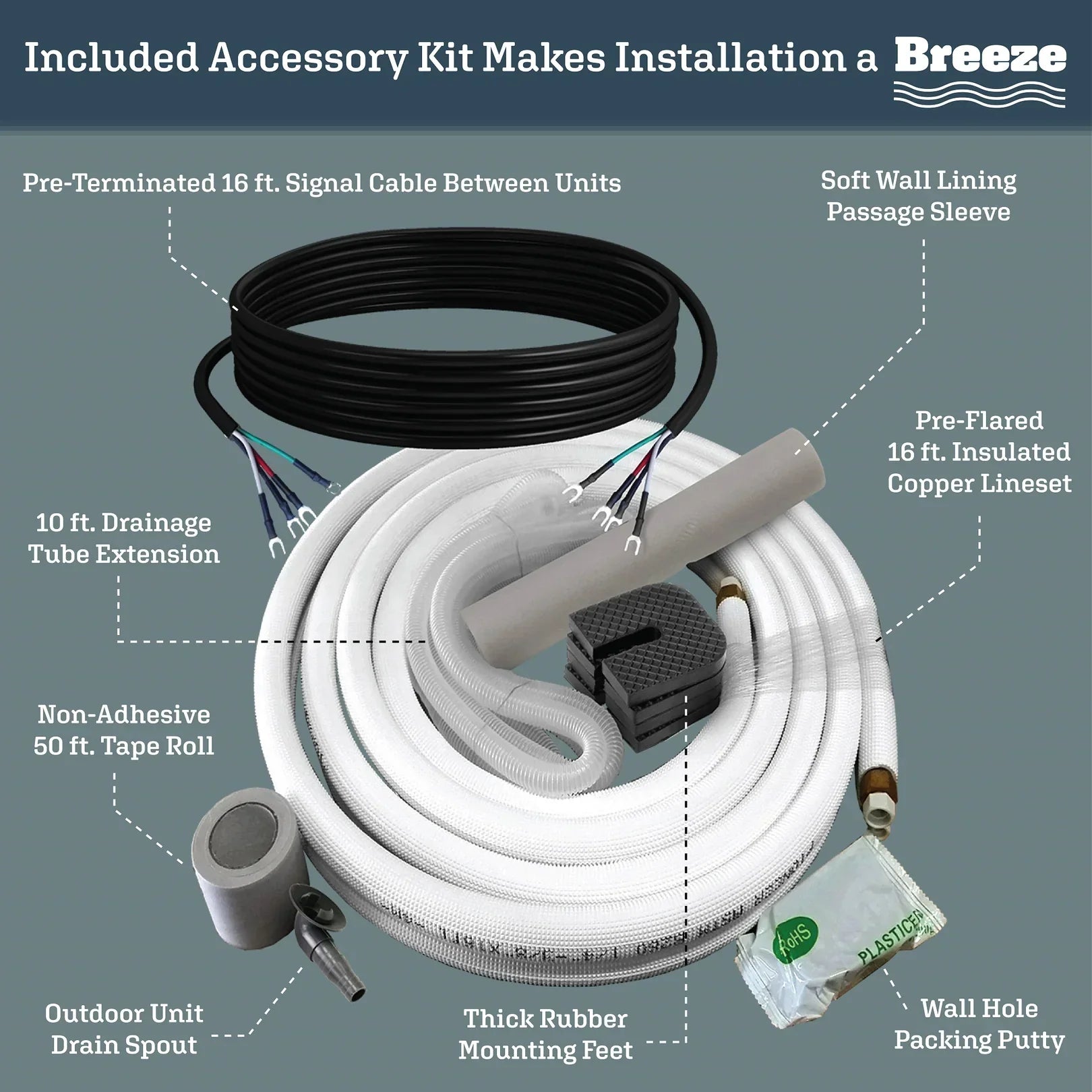

- Complete System Kit — Includes indoor unit WT036GLUI17HLD, outdoor unit YN036GLUI17RPD, wireless remote control, wall holder, batteries, 16 ft copper lines, 16 ft electrical wire, 10 ft drain, wall passage sleeve putty, leak guard sealer tape, installation manual, and user’s manual.
- Smart Comfort Features — Dual-axis motorized louvers for precise airflow control; automatic air-sweeping to distribute conditioned air evenly; multiple modes (Cool, Heat, Dry, Vent) with washable/reusable filters. Remote offers ECO, SLEEP, TIMER, TURBO, MEMORY, and IFEEL for personalized comfort.
- Room Coverage and Range — Recommended for 800–1350 sq ft spaces. Standard ambient operation from 5°F in heating up to 122°F in cooling for year-round comfort.
- Quiet Operation and Dimensions — Indoor unit operates quietly (varies by mode) with dimensions 46-7/8" W x 10-1/4" D x 14-1/4" H and weight 38.6 lb. Outdoor unit measures 38-1/2" W x 16-1/2" D x 31-5/8" H with a robust build and solid sound performance.
- Electrical and Installation Details — Requires a 30A double-pole breaker. Piping diameter 1/4–5/8". Includes everything needed for a streamlined installation with the 16 ft lineset option.
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 16 Ft Copper Lines
- 16 Ft Electrical Wire
- 10 Ft Drain for indoor/outdoor
- Wall Passage Sleeve Putty for Wall Hole
- Leak Guard Sealer Wrapping Tape
- Installation Manual
- User’s Manual

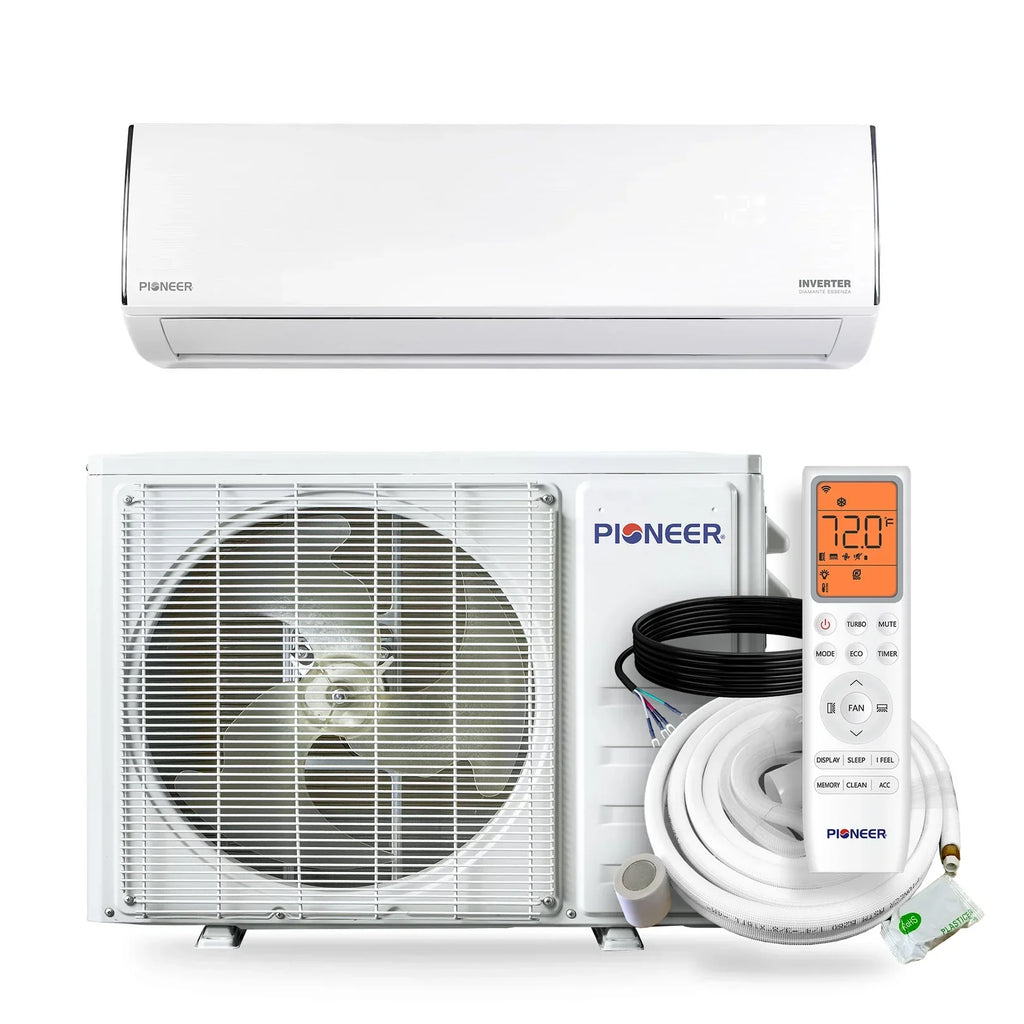

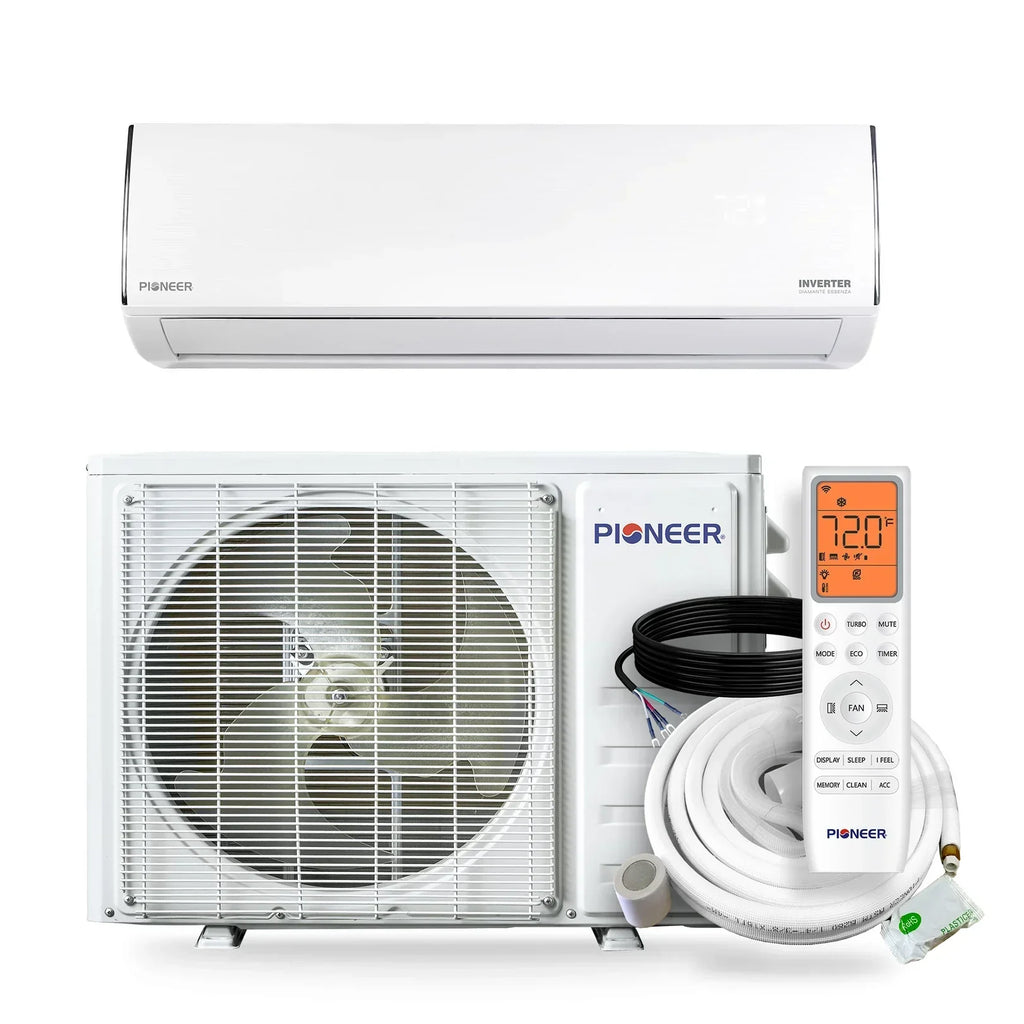

Upgrade your space with the Diamante Essenza—the perfect blend of performance, efficiency, and modern design. Ideal for homes and light commercial environments that demand dependable cooling, heating, and year-round comfort with a compact, stylish footprint. Images available with the listing show the Outdoor Condenser, Indoor Air Handler, 16 Ft Installation Kit, and Handheld Remote to illustrate every component of this complete system.
