Diamante Essenza™ High-Wall Series
Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.
What's Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase.
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Capacity Range: 5,120~24,500 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 22,400 BTU/h
- Heating Capacity Range: 5,120~24,500 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 600~950 sq ft
- Minimum Room Size: 41 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4-1/2"
- AHRI Reference: 217048737
-
Indoor Unit
- Part Number: WT024GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
- Product Dimensions (WDH): 39-3/4 x 8-3/4 x 12-3/8 Inches
- Carton Dimensions (WDH): 43-1/8 x 11-3/4 x 15-3/8 Inches
- Net / Gross Weight: 26.5 / 33.1 lbs
-
Outdoor Unit
- Part Number: YN024GLUI17RPD
- Breaker Needed: 20A (double-pole)
- Sound Level: 56 dB(A)
- Net Dimensions (WDH): 34 x 13-3/4 x 23-5/8 Inches
- Carton Dimensions (WDH): 35-1/2 x 15-7/8 x 26-7/8 Inches
- Net / Gross Weight: 70.5 / 82.7 lbs

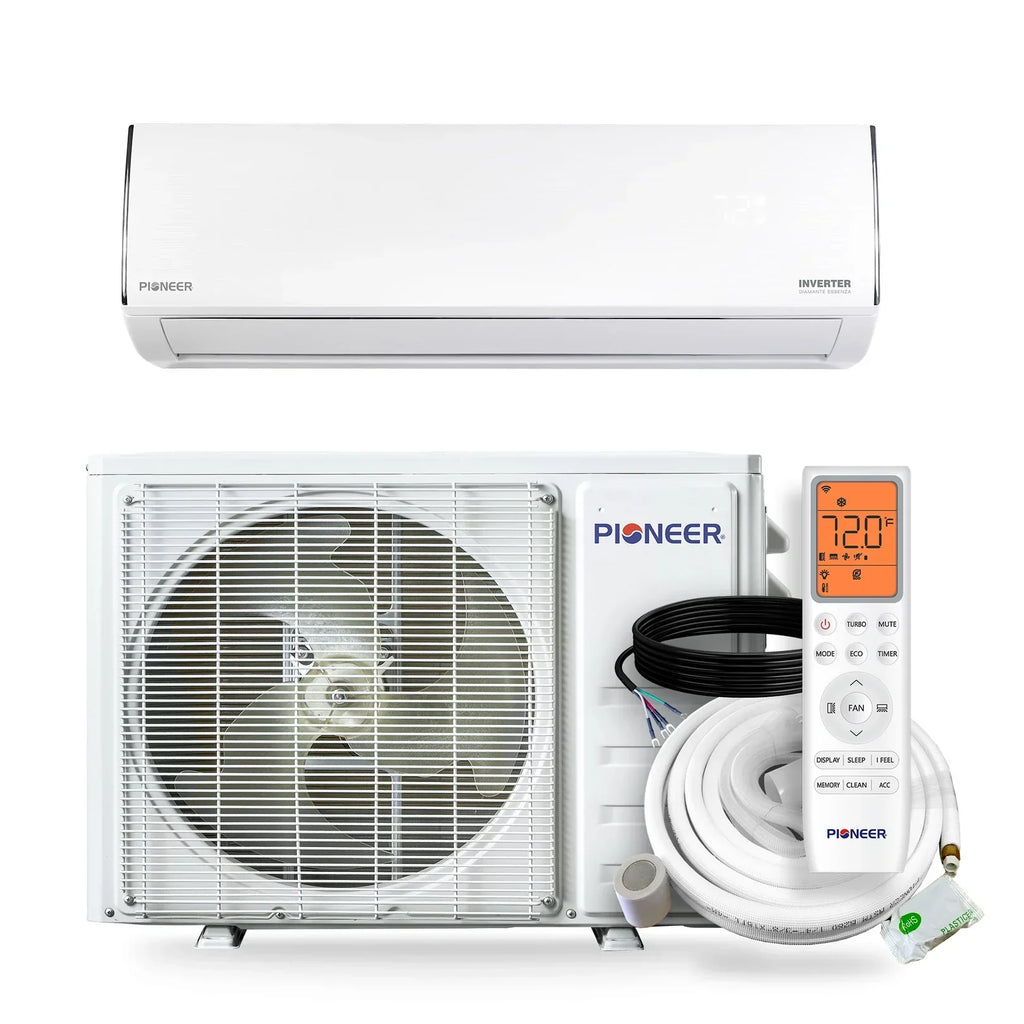

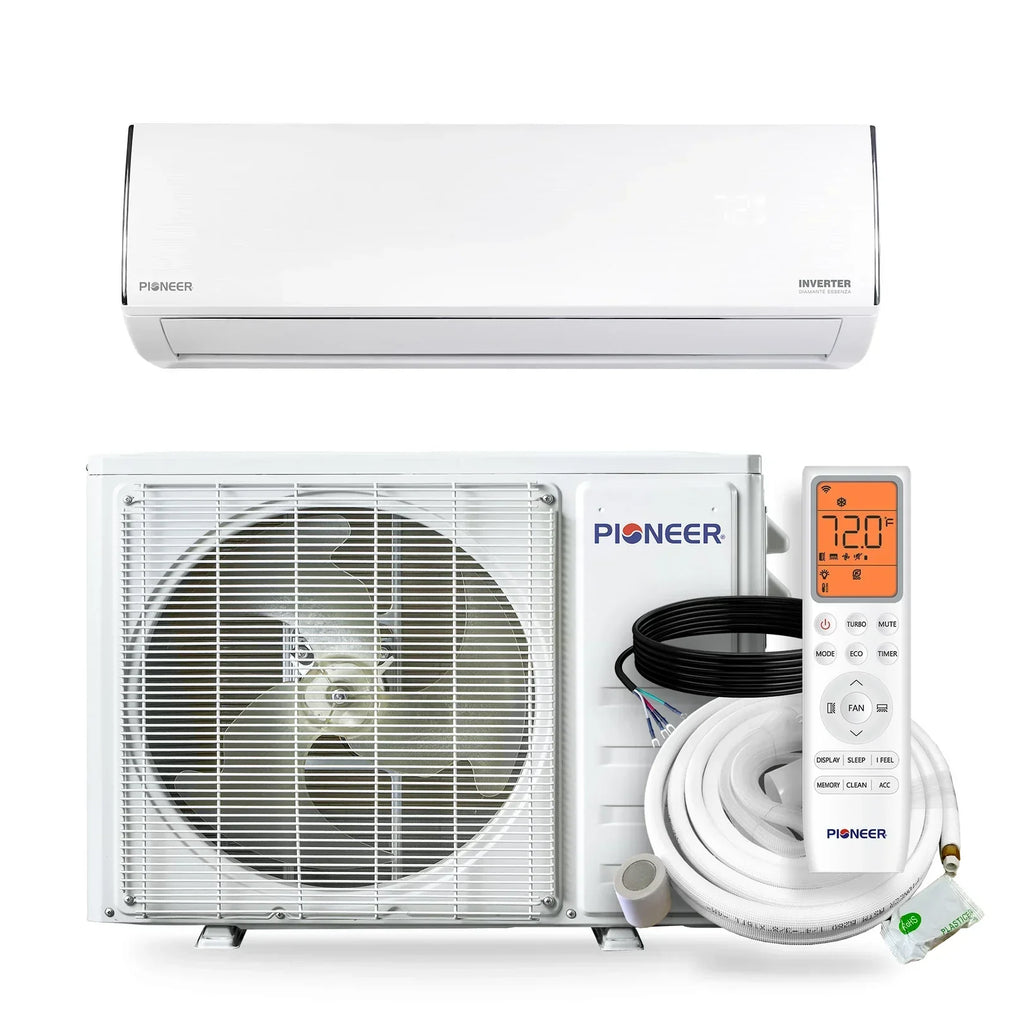

Your Purchase Includes:
Outdoor Condenser

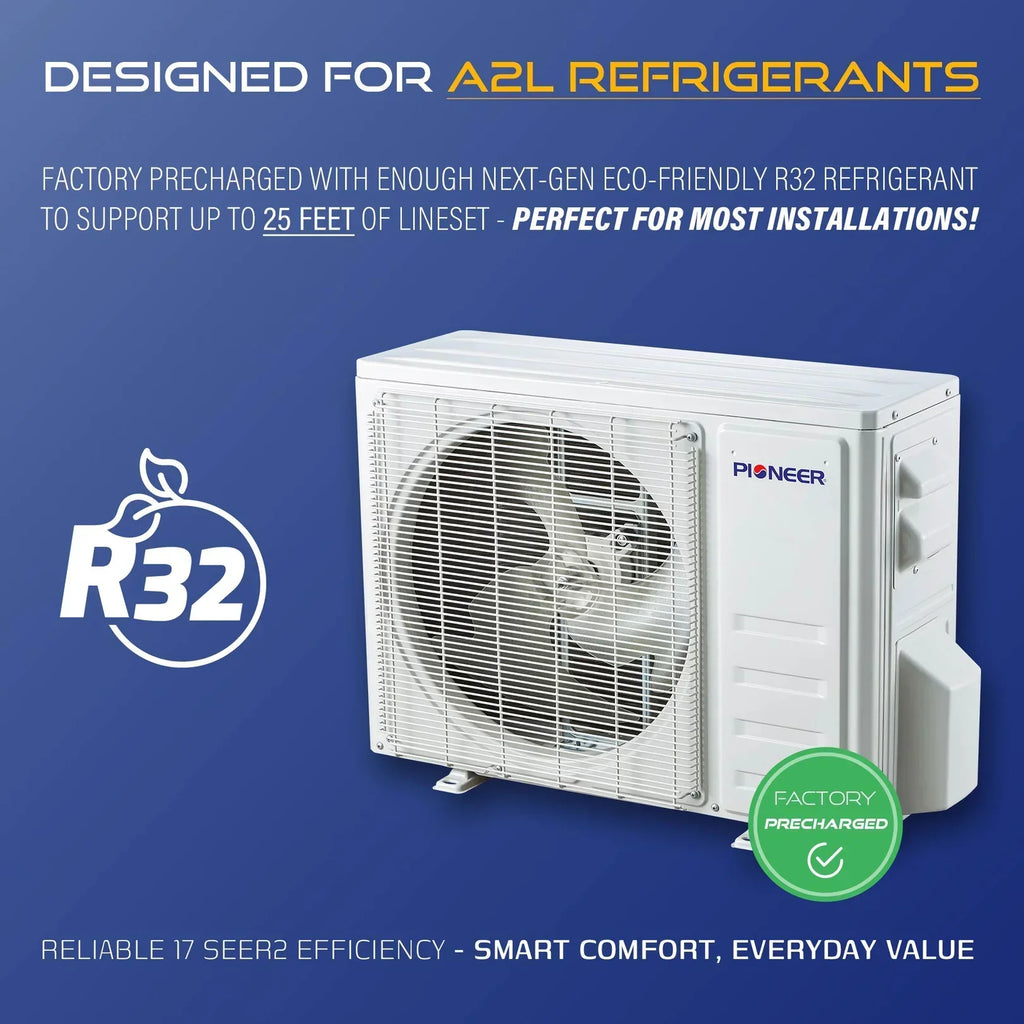

Pre-charged from the factory with enough R32 refrigerant to accomodate up to 25' lineset lengths, and equipped with intelligent self-defrost.
Indoor Air Handler
Whisper-silent and beautifully sleek, it mounts onto the wall and features a washable, re-usable dust filter and an easy-to-use self-clean mode for easy maintenance.

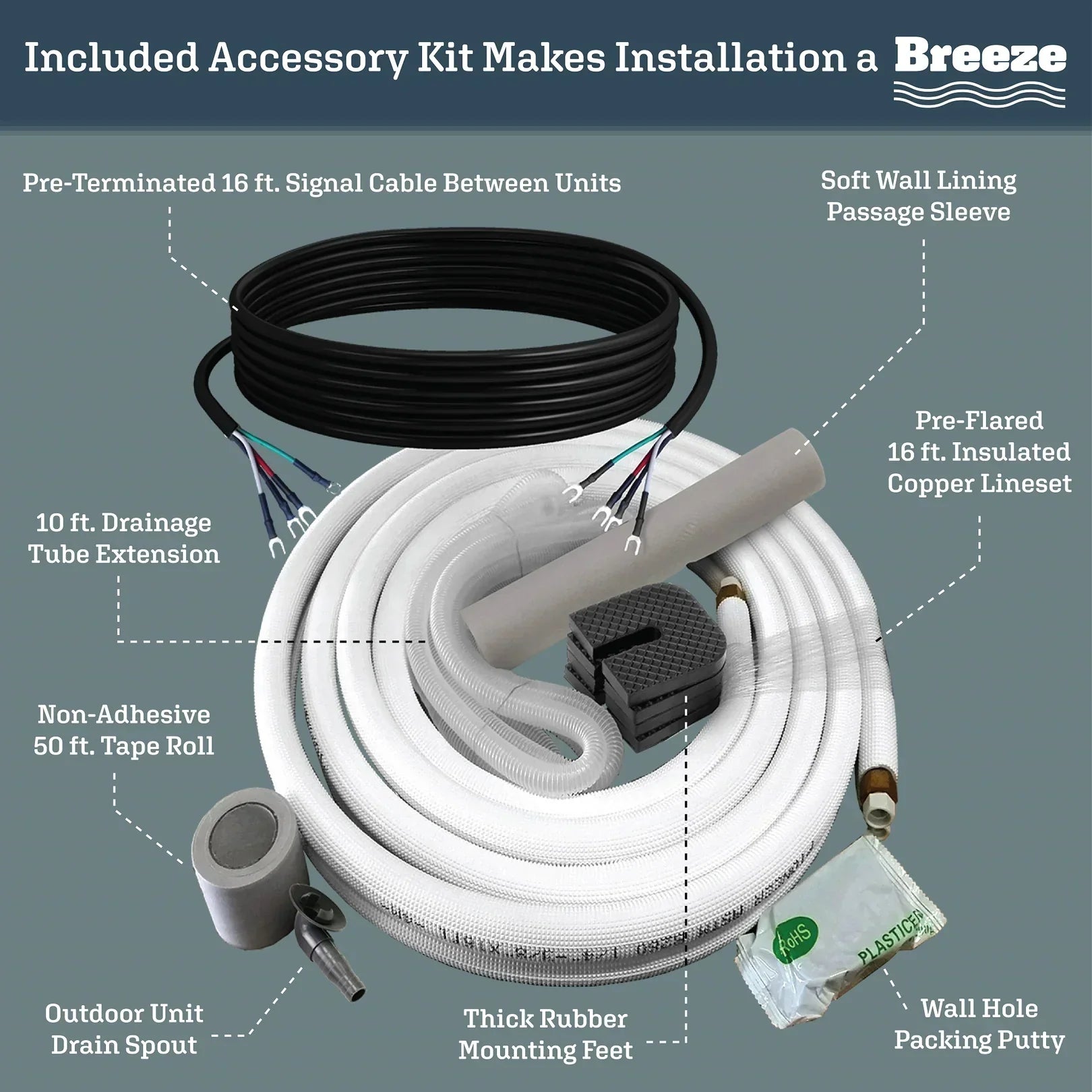

16' Installation Kit
Included with system purchase is the full installation kit which features a 16' insulated copper lineset, 16' signal cable between units, and a 10' drain hose.
Handheld Remote
Functional in form and easy-to-read, the remote offers all of the essential features like Cool, Heat, Dry and Fan modes, as well as I FEEL to detect nearby temperature.
