PioneerSKU: WYT012ALUI17RL
Price:
$768.00

Description

Diamante Essenza™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

Summary

  • Standard Efficiency Diamante Essenza™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 11,500 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

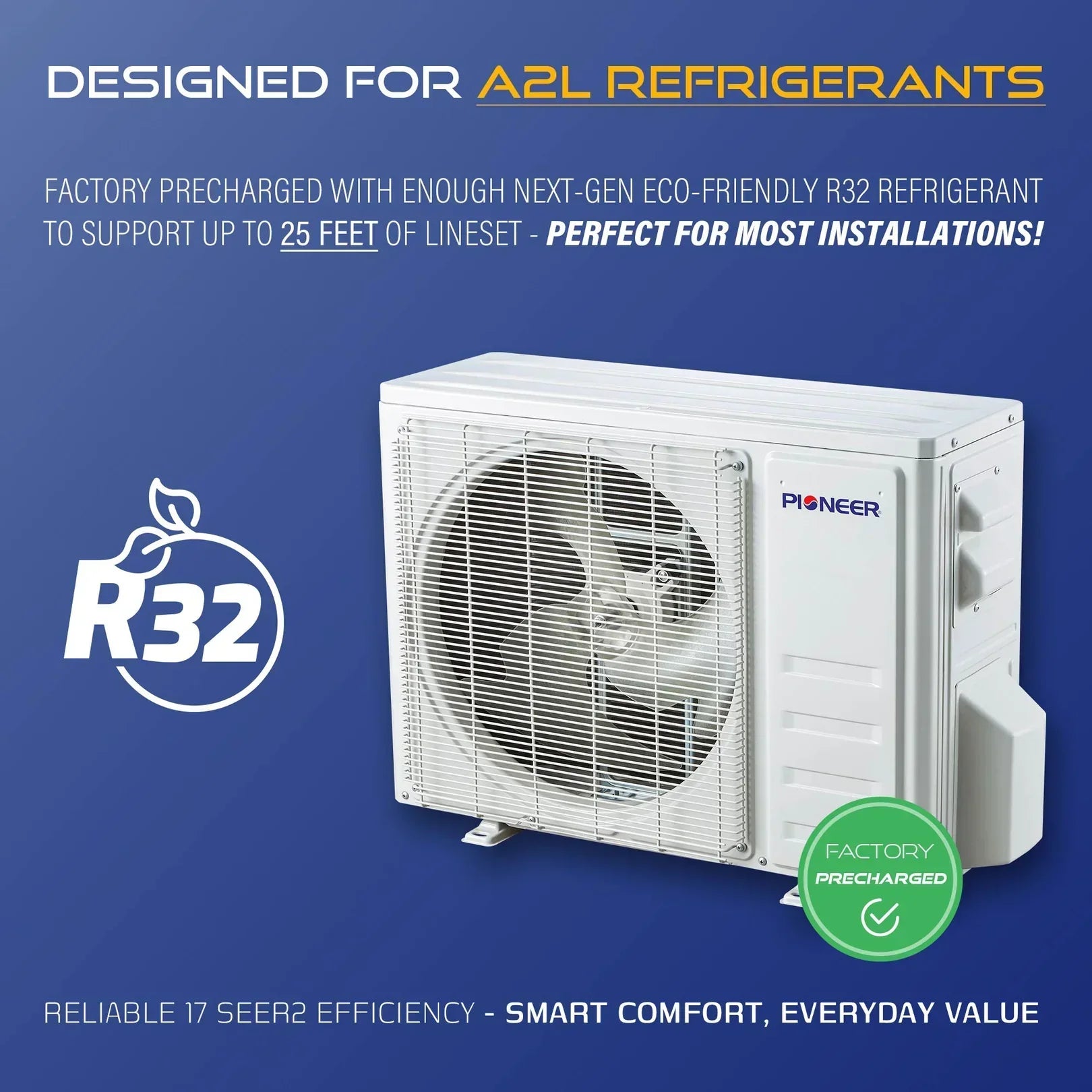

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Standard Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

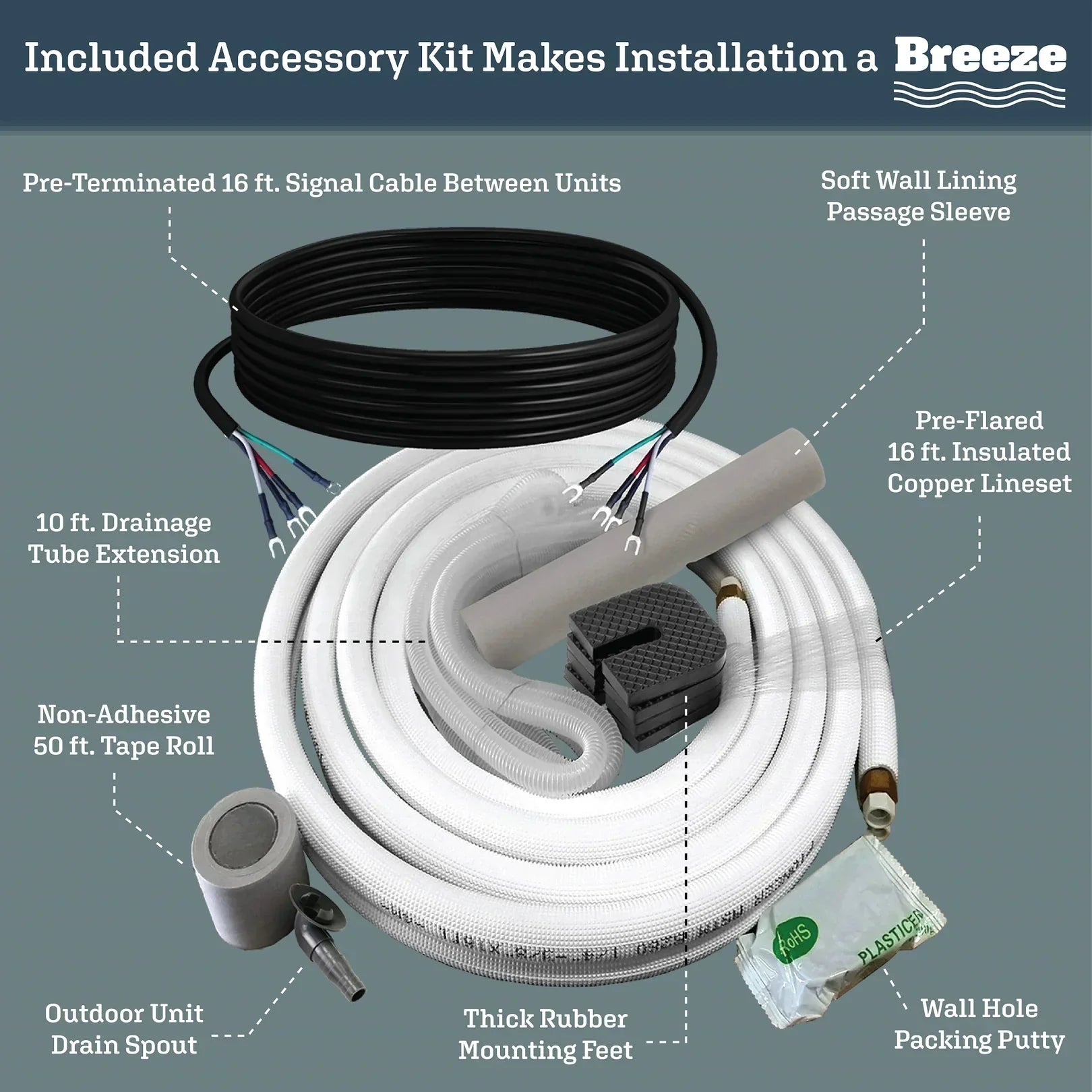

  • System Kit
    • Power Supply:110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 11,500 BTU/h
    • Cooling Capacity Range: 2,050~12,000 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 11,500 BTU/h
    • Heating Capacity Range: 2,050~12,500 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.1 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 200~450 sq ft
    • Minimum Room Size: 20 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4-3/8"
    • AHRI Reference: 217048734
  • Indoor Unit
    • Part Number: WT012ALUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 276 / 265 / 241 / 224 / 206 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 36 / 33 / 29 dB(A)
    • Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
    • Carton Dimensions (WDH): 33-1/8 x 10-1/4 x 12-3/8 Inches
    • Net / Gross Weight: 16.5 / 20.9 lbs
  • Outdoor Unit
    • Part Number: YN012ALUI17RPD
    • Breaker Needed: 20A (single-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
    • Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
    • Net / Gross Weight: 50.7 / 61.7 lbs
