Product Description

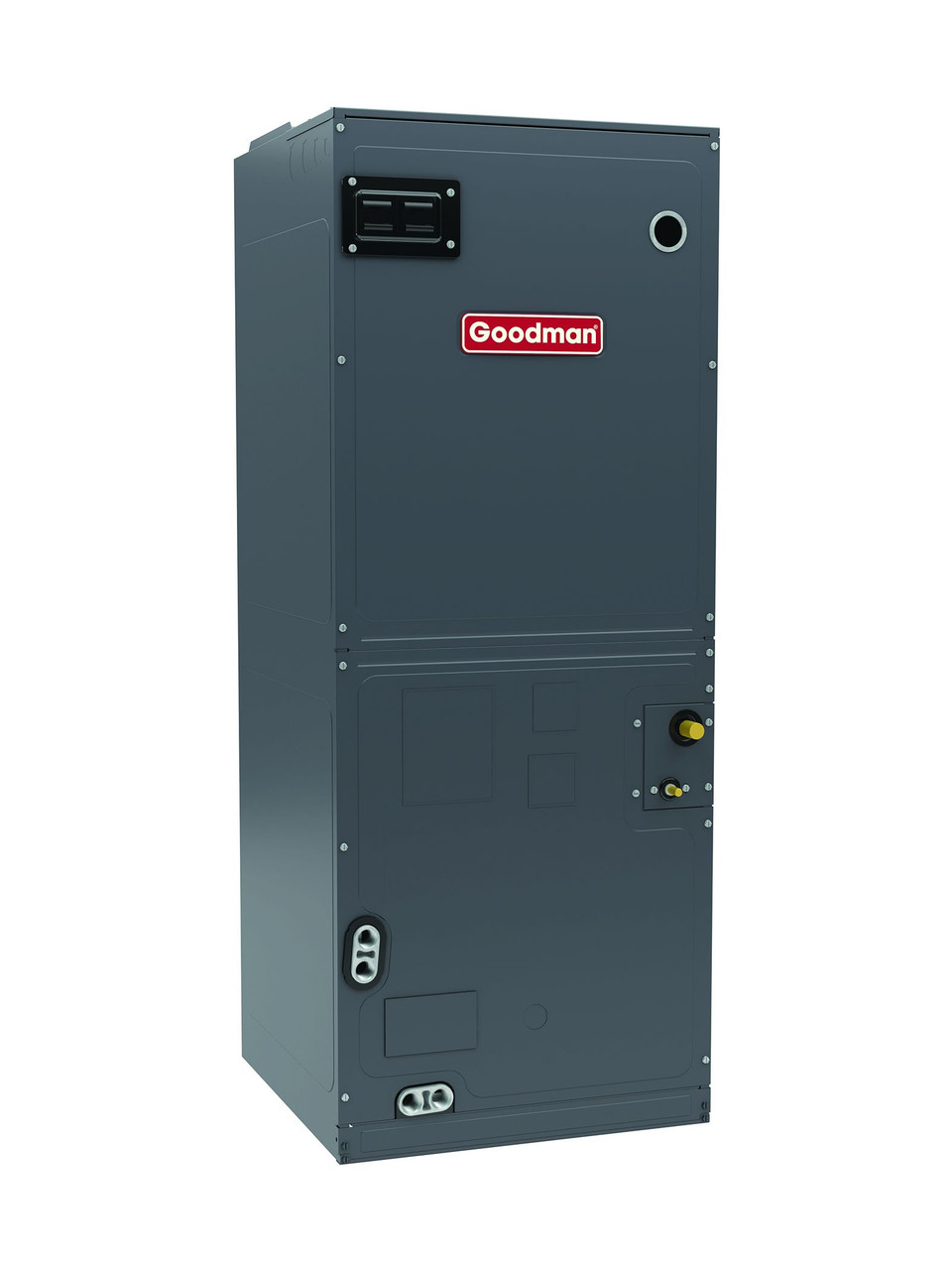

The Goodman AMST Air Handler is now available! This unit is compatible with R-32 units.
Standard Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
- Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
- AHRI certified; ETL listed
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce con- densation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Product Specification
| Model Number(s) | AMST60DU1300 |
| Brand | Goodman |
| Type | Air Conditioning |
| Category | Air Handlers |
| Ton | 5.0 Ton |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-32 |
| Height (Inches) | 58 |
| Width (Inches) | 24 1/2 |
| Depth (Inches) | 21 |
| Total Shipping Weight (lbs.) | 167 |
| Parts Warranty (Years) | 10 |
| UPC # | 663051689220 |
