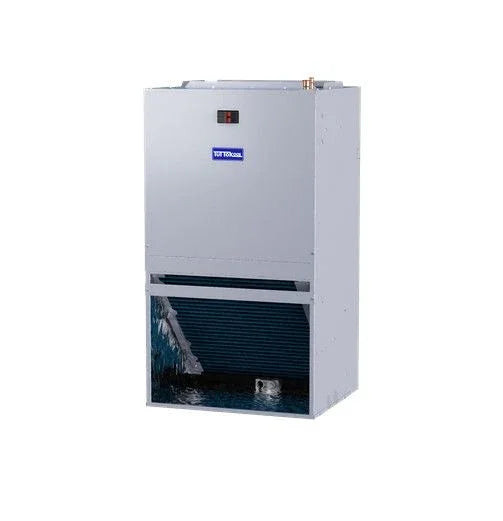

Product Description
The TuttoKool Front Return Air Handler offers you high quality product at an affordable price, breaking the traditional view that an air handler has to be expensive.
Standard Features:
- Direct-drive, multi-speed motors allow air volume variation for heating / cooling.
- Multi-speed ECM motor: M152 series
- Multi-speed PSC motor: M134 series
- Thermoplastic drain pan with bottom primary and secondary drain connections.
- Built-in filter rack.
- Wall-hanging bracket included.
- Front or bottom return available.
- Optional heating elements in 5kW, 7.5kW, and 10kW.
- All-aluminum coil.
- AHRI listed and ETL listed.
- R454B refrigerant sensor is configured to ensure safe operation.
- R454B refrigerant sensor is factory-installed, more rooms are available for installation.
- 5-Years: Standard Parts Warranty
- 10-Years: After Registration
Product Specification
| Model Number(s) | TWM5E37B000A - BAYHTRJ505BRKAA |
| Brand | TuttoKool |
| Category | Air Handlers |
| Ton | 3.0 Ton |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 15 |
| Blower | Multi-Speed |
| Refrigerant Type | R-454B |
| Liquid Valve Size (Inches) | 3/8 |
| Height (Inches) | 39 1/2 |
| Width (Inches) | 22 |
| Depth (Inches) | 19 |
| Total Shipping Weight (lbs.) | 98 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190270153 |
