Product Description
Coleman 36515-011 13,500 BTU RV Basement Air Conditioner With Heat Pump
Compact, Powerful Cooling And Heating Below Deck
Stay cool and comfortable on the road with the Coleman 36515-011 Basement Air Conditioner, delivering 13,500 BTUs of efficient climate control in a compact, below-floor unit.
Key Features:
-
13,500 BTU Cooling Capacity
Powerful performance for mid-sized RVs, keeping interiors cool even in hot, humid conditions. -
Basement-Mount Design
Installs beneath the floor to free up roof space for solar panels, satellite systems, or low-clearance storage. -
Reliable Coleman Performance
Built by one of the most trusted names in RV climate systems, known for durability and efficient operation. -
Low-Profile, Out-of-Sight Operation
Quiet performance with minimal intrusion into your RV’s living or exterior profile. -
Ducted System Compatible
Designed for ducted HVAC configurations to distribute cool air evenly throughout your RV.
Additional Specifications:
- Heat pump Included
- Two high-efficiency compressors
- Automatically cycles on one or both compressors
Specifications:
| Feature | Detail |
|---|---|
| Model | 36515-011 |
| BTU Rating | 13,500 BTU |
| Mounting Style | Basement / Underfloor |
| Electrical | 120V AC / Standard RV hookup |
| Weight | Approx. 100 lbs (varies) |
| Compatibility | Select RVs with ducted HVAC |
Features & Benefits:
- Two High-Efficiency Compressors
- Automatically Cycles On One Or Both Compressors
- Heat Pump Uses Electricity To Provide Heat When Temperatures Are Moderate
- Powerful Cooling And Heating In Once Self-Contained Package
- Made In USA
- Limited 2 Year Coleman Manufacture Warranty - Starts On The Date Of Purchase
Need help confirming fitment?
Our team at Brands Hut is here to help you find the right replacement or parts for your RV Air Conditioner.
Text or call 386-867-1400 with the make and model number of your existing water heater and we’ll make sure you get exactly what you need the 1st time.
Specifications:
- Mount: Basement
- BTU Level: 13500 BTU
- AC System: Ducted System Or Non Ducted System
- Zone Control: Without Built-In Zone Control Electronic Board
- Color: White
- Cooling Type: Evaporative Cooling
- Function: AC And Heating
- Voltage Rating: 120 Volt
- Ampere Rating: 10 Amp
- Evaporator Flow Rate: 600 CFM (Cubic Feet Per Minute)
- With Condensate Pump: No, Condensate Pump not included
- Estimated Install Time (Hours): 1.5

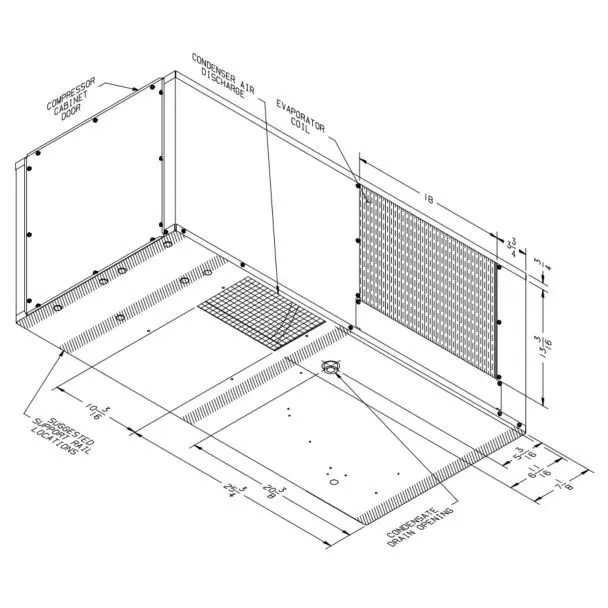

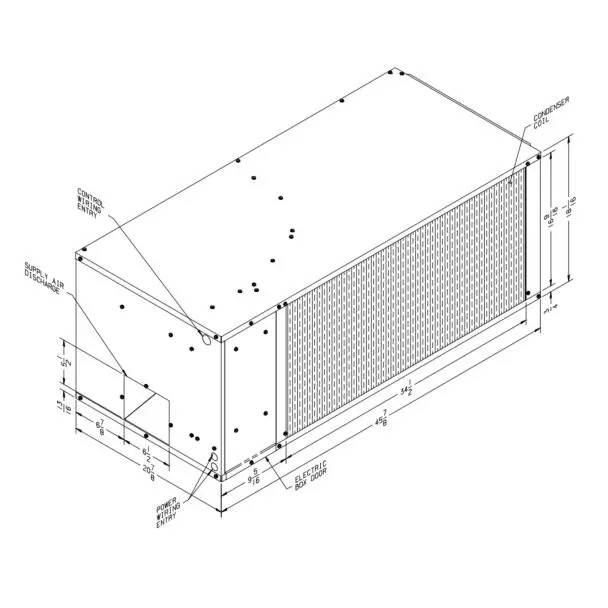

- 45-7/8 Inch Length x 20-7/8 Inch Width x 18.0625 Inch Height
- Duct Kit And Interior Components Not Included - Sold Separately
