Product Description
The Advant Air Ceiling Assembly Kit features a Flash Freeze feature that can be used ducted or non ducted.
Upgrade your RV’s air distribution system with the Advent ACRDTH25 Ceiling Assembly, designed for smooth operation, quiet airflow, and efficient cooling in RV air conditioning setups.
Key Features:
-
Ducted Airflow Design – Ideal for RVs with ducted A/C systems, ensuring even air distribution throughout your space.
-
Wall Thermostat Compatible – Designed to connect with your existing wall thermostat for seamless control of fan speed, temperature, and mode.
-
Low-Profile Design – Blends neatly into your RV ceiling with a clean, unobtrusive finish.
-
Quiet Operation – Built with noise-reducing components to minimize fan and motor sounds inside your RV.
-
Easy Installation – Includes mounting hardware and step-by-step instructions for a hassle-free setup.
Specifications:
- Dimensions:
- Air distribution box: 21" wide x 21" deep
- Thermostat: 3" wide x 3" tall x 7/8" deep
- Thermostat temperature range: 60 F to 86 F (16 C to 30 C)
- 2-Year warranty
- Air distribution box works with new 2025 Advent Air AC units
- Replaces, upgrades, or adds an air distribution box and thermostat
- Compatible with ducted or non-ducted AC systems

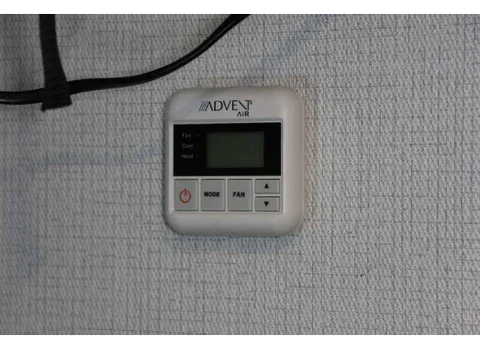

- Wall-mounted thermostat with LED digital display controls the mode, fan, and temperature settings
- 3 Slotted registers and a louvered vent provide maximum airflow
- Curved, low-profile design gives you additional ceiling clearance
- Removable air filter allows for easy cleaning to prevent dust and dirt build-up
- Bolt-on installation with included mounting hardware and screw covers
- UL and cUL certified
- Alternate Part numbers: 310104, ACRG15
- Kit includes ceiling assembly, digital thermostat, and digital relay
Compatible With:
-
Advent Air rooftop A/C units ACM135, ACM150
-
14" x 14" standard ceiling vent openings
Notes:
- Compatible with units using R410A
- This unit is updated to only work with AC systems using R32 Coolant.
Perfect for upgrading or replacing your existing ceiling assembly in an applicable R32 ducted or non-duct system, the ACRDTH25 offers improved airflow control and a modern, thermostat design that integrates beautifully into any RV interior.
Order today and keep your RV cool, quiet, and comfortable all season long!
Need help confirming fitment?
Our team at Brands Hut is here to help you find the right replacement or parts for your RV AC
Text or call 386-867-1400 with the make and model number of your existing Air Conditioner and we’ll make sure you get exactly what you need the 1st time.
